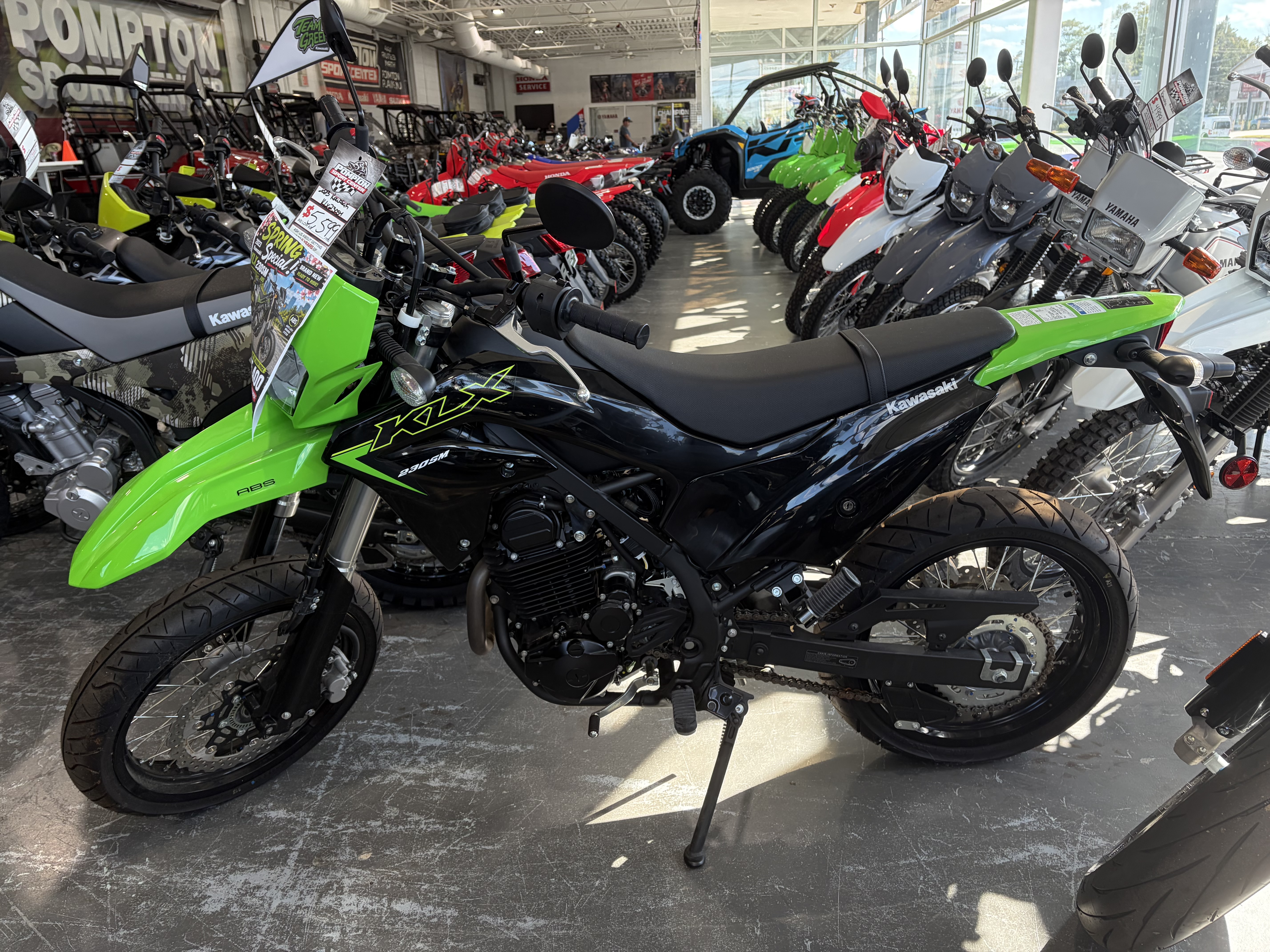

Turn up the fun on the streets with the all-new KLX®230SM lightweight supermoto motorcycle. Every trip is an experience when you ride through the city or twisty backroads sporting a quick-revving engine and nimble handling. Be quick to steal the scene with equal parts performance and attitude.

SUPERMOTO STYLE

ALL ATTITUDE. NO APOLOGIES.

The aggressive supermoto-inspired bodywork, finishes, and components on the KLX®230SM supermoto motorcycle deliver performance and attitude.

RESPONSIVE POWER

REV UP THE FUN

The KLX®230SM supermoto motorcycle is powered by a 233cc, fuel-injected, air-cooled engine. Experience a fun and exciting spread of power tuned for low- to mid-range acceleration.

Additional Vehicle Features:

• Powerful large-diameter disc brakes
• Low seat height
• Aggressive supermoto styling
• Bright LED headlight

Specification:

Power

• Engine - 4-stroke single, SOHC, air-cooled
• Displacement - 233cc
• Bore x Stroke - 67.0 x 66.0mm
• Compression Ratio - 9.4:1
• Fuel System - DFI® with 32mm Keihin throttle body
• Ignition - TCBI with Electronic Advance
• Transmission - 6-speed, return shift with wet multi-disc manual clutch
• Final Drive - Chain

Performance

• Front Suspension / Wheel Travel - 37mm telescopic fork/8.0 in
• Rear Suspension / Wheel Travel - Uni-Trak® linkage system and single shock with adjustable spring preload/8.6 in
• Front Tire - 110/70-17
• Rear Tire - 120/70-17
• Front Brakes - Single 300mm petal disc with a dual-piston caliper (and ABS)
• Rear Brakes - Single 220mm petal disc with single-piston caliper (and ABS)
